The New - LiftPro PLUS (3rd Gen) Garage Door Operators
LiftPro PLUS Belt Rail Garage Door Operators
The LIFTPRO PLUS 1000/1500 deliver dependable performance, modern safety features, and installer-friendly functionality – available exclusively from Sparesmaster.
Includes:
- Operator Head Unit
- 2x Remote Control Transmitters

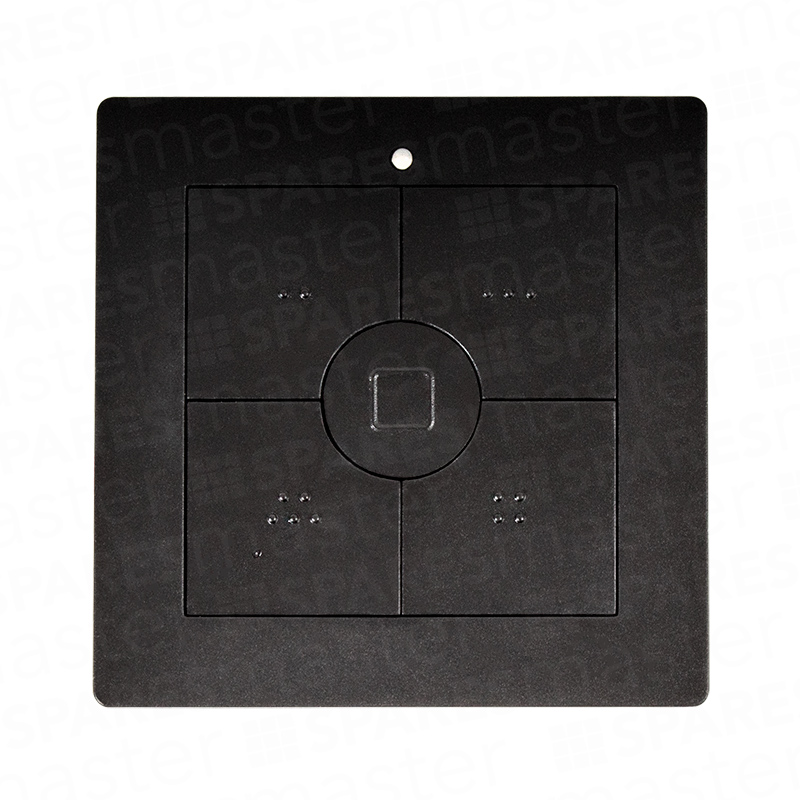

- Wall Control
- Fixings and Towing Block

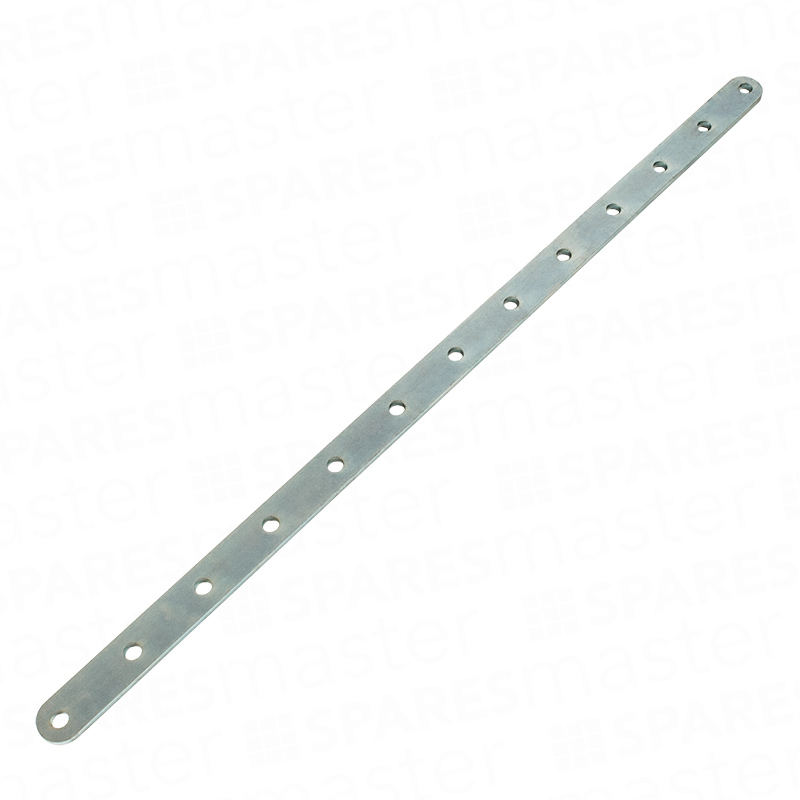

- Connecting arms, 1 straight, 1 Curved
Explore the New LiftPro PLUS Garage Door Operators
- Key Features
Microprocessor Control- Single-button operation for Open / Stop / Close
- Intelligent force regulation for smooth and controlled movement
- Courtesy LED light activates during operation and switches off automatically after 3 minutes
- Obstruction detection automatically stops and reverses the door when closing
- Built-in protection against overload, overheating, and low input voltage
- Optional functions include:
- Photo beam safety sensors
- Auto-close function
- Automatic electronic door locking
Quiet & Efficient DC Motor
- 24V DC motor for low-noise operation
- Soft-start and soft-stop technology reduces mechanical wear
- Designed for long-term reliability and extended service life

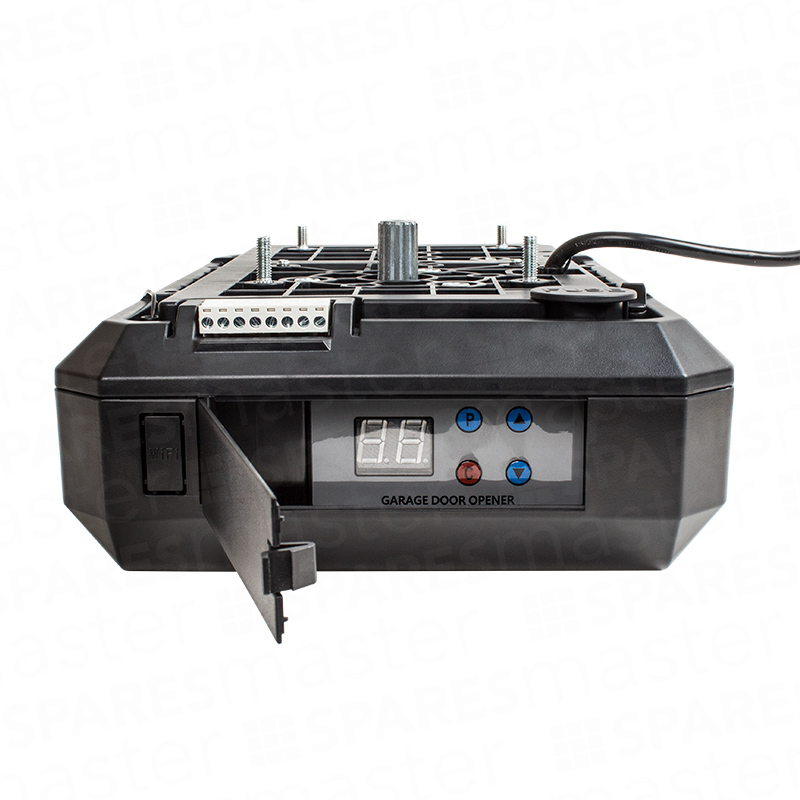

LED Status Display
- Clear LED screen displays current operating status and system information
Enhanced Security
- Rolling code technology prevents code copying and unauthorised access
- Operates on 433.92MHz reception frequency
Manual Release
- Allows manual operation of the garage door during power failure

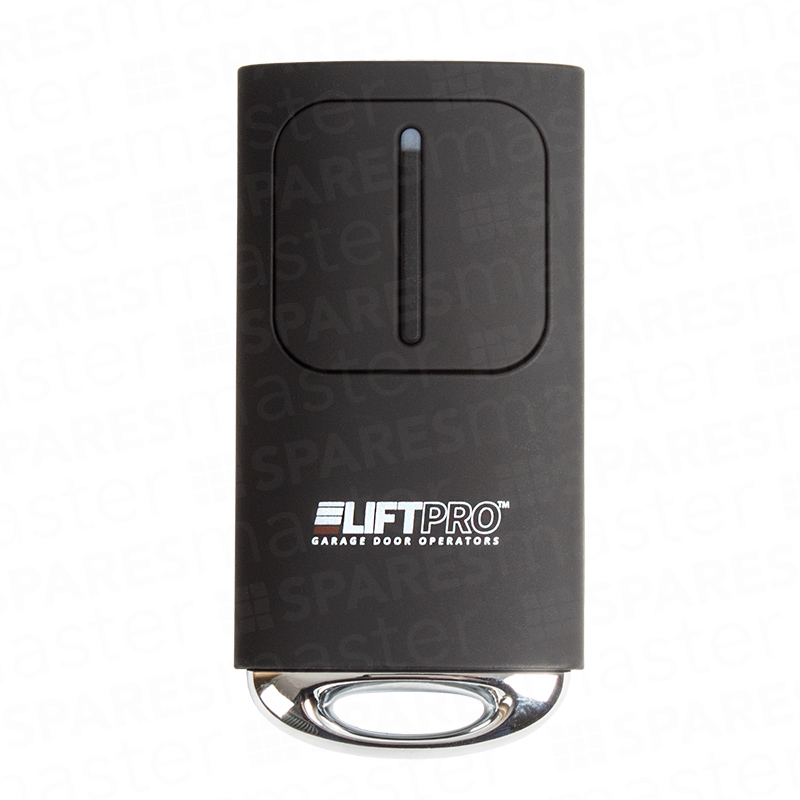

Remote Control Information
- x2 Remote Control Transmitters
- Four programmable buttons (channels)
- One remote can control up to four different garage door operators when auto-locking and ventilation features are disabled.
When these features are enabled, the remote controls one door only

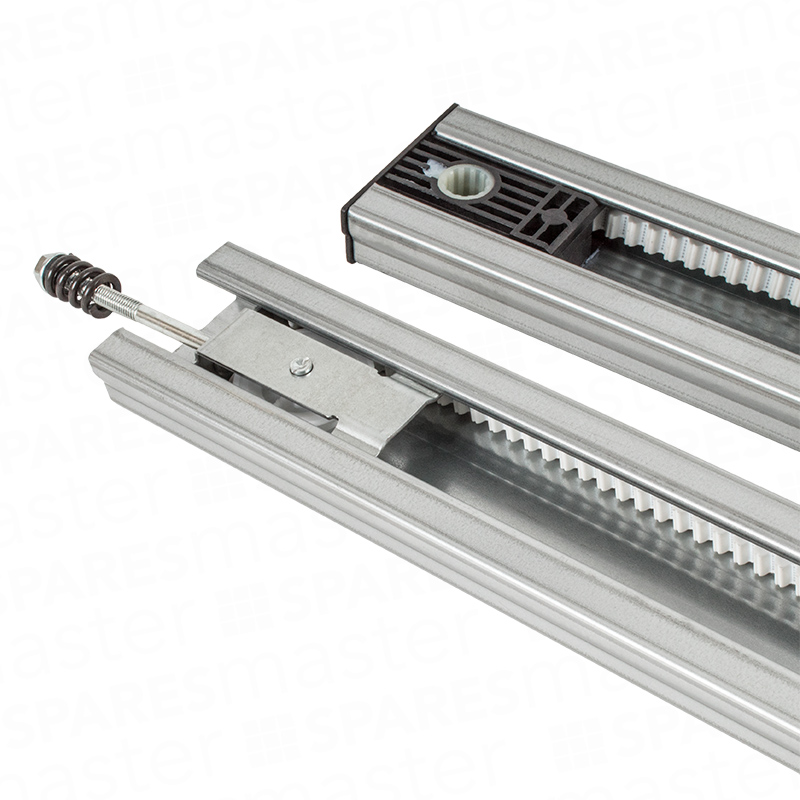

Belt Rails are sold separately
- One Piece Belt Rail in four different lengths, 2.4m, 3m, 4m and 5m
- Two Piece Belt Rail in 3m and 5m lengths
Optional Accessories (Sold Separately)

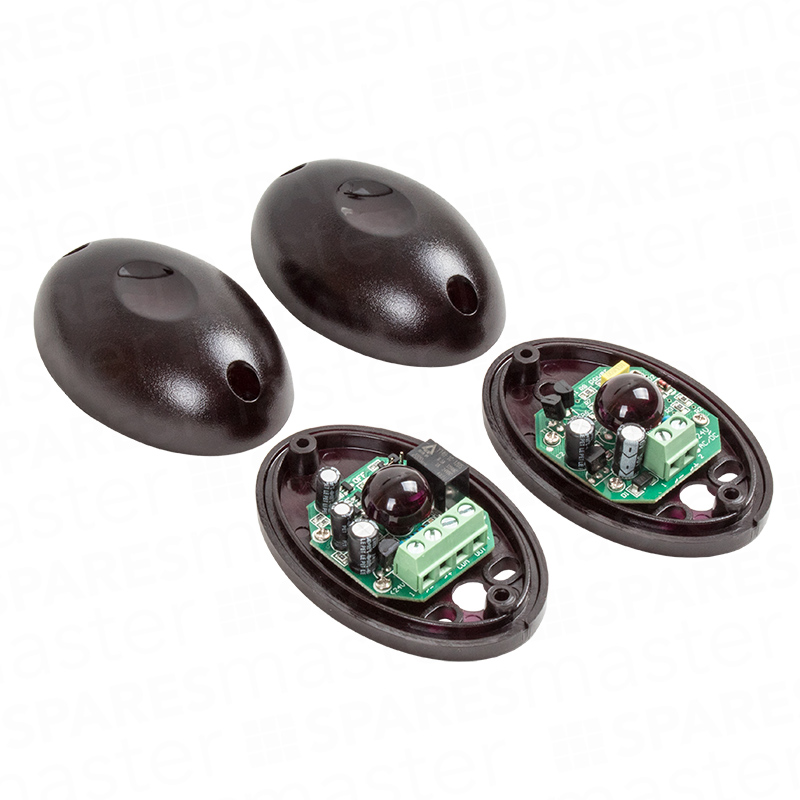

- Photo beam safety sensors

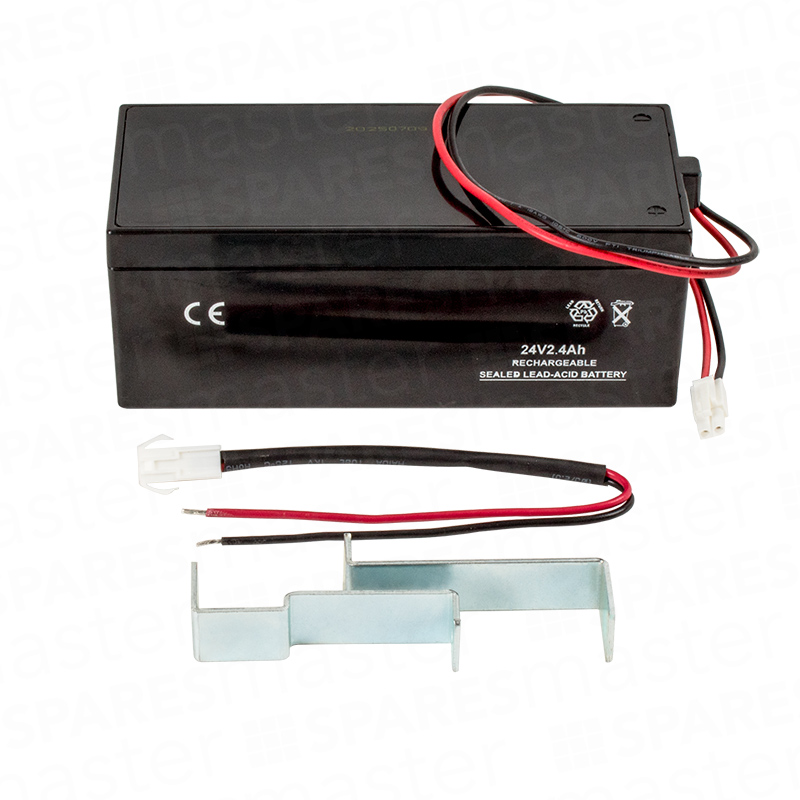

- Battery backup unit

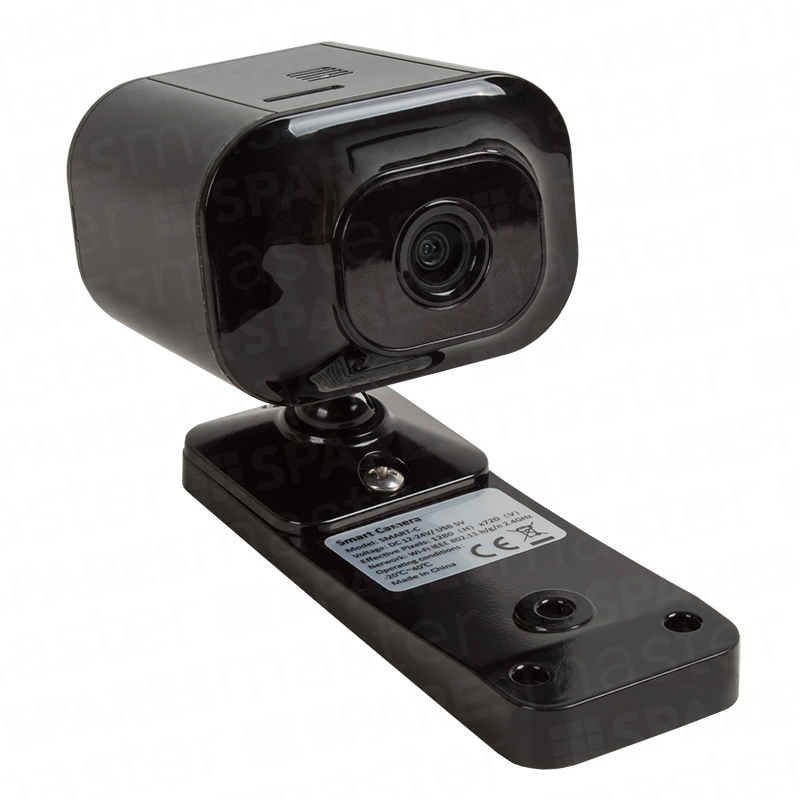

- Wi-Fi camera

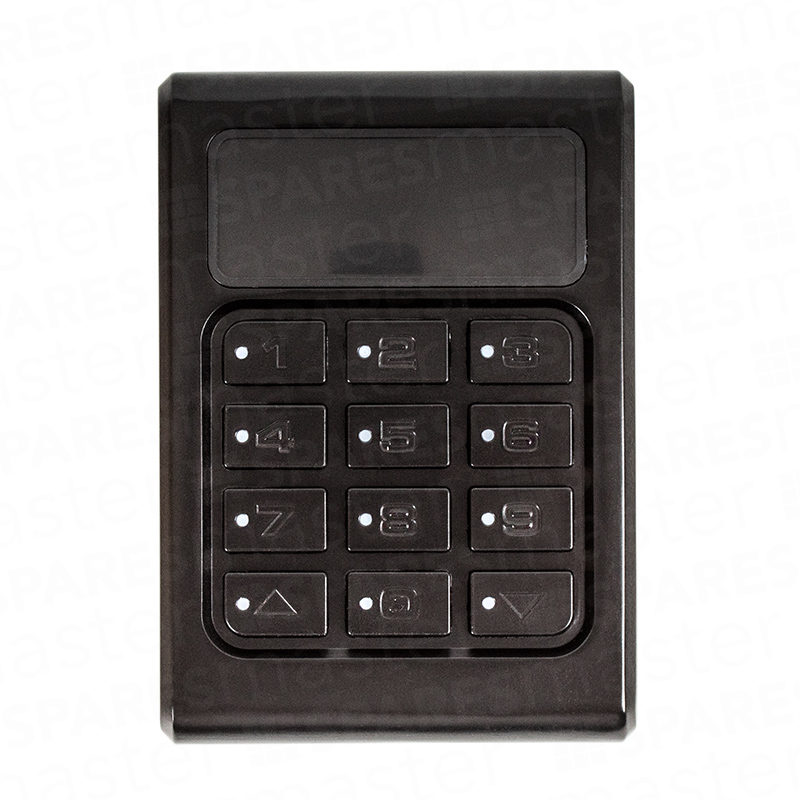

- Additional wall control stations

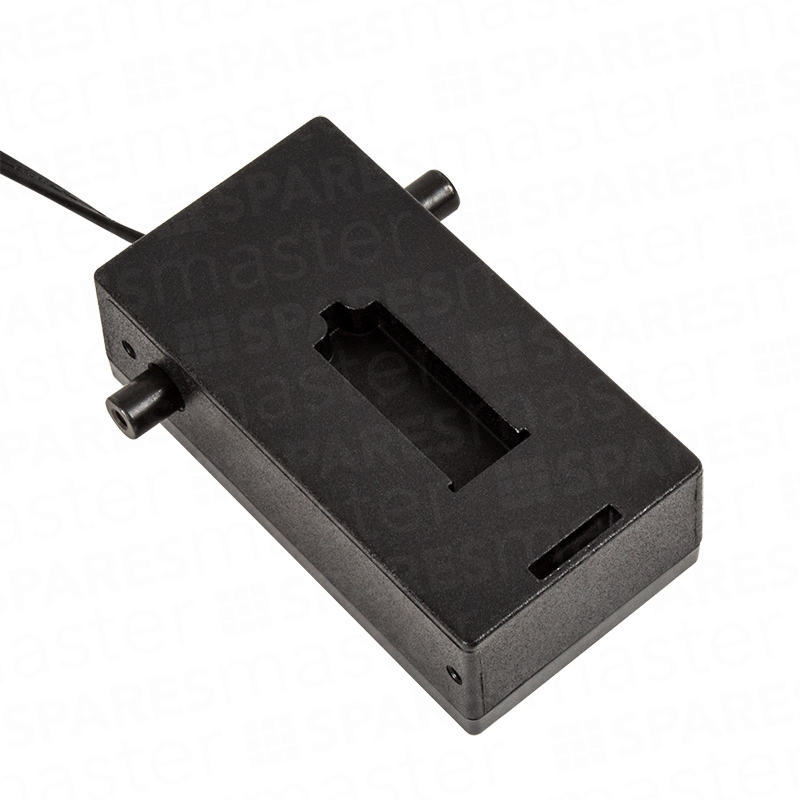

- Electronic Lock
Power Input: 230V AC ±10%, 50Hz
Motor Voltage: 24V DC
Available Thrust Force: 1000N/1500N
Operating Temperature: -20°C to +40°C
Relative Humidity: ≤90% (non-condensing)
Standby Power Consumption: <0.5W
Lighting: LED
Courtesy Light Timer: 3 minutes
Security Coding: Rolling Code
Reception Frequency: 433.92MHz
Transmitter Batteries: CR2032 or 2 × CR2016
LiftPro PLUS Accessories
Previous LiftPro Generations
LiftPro Evo (2nd Gen) Garage Door Operators
Modern Design Paired with Cutting Edge Technology

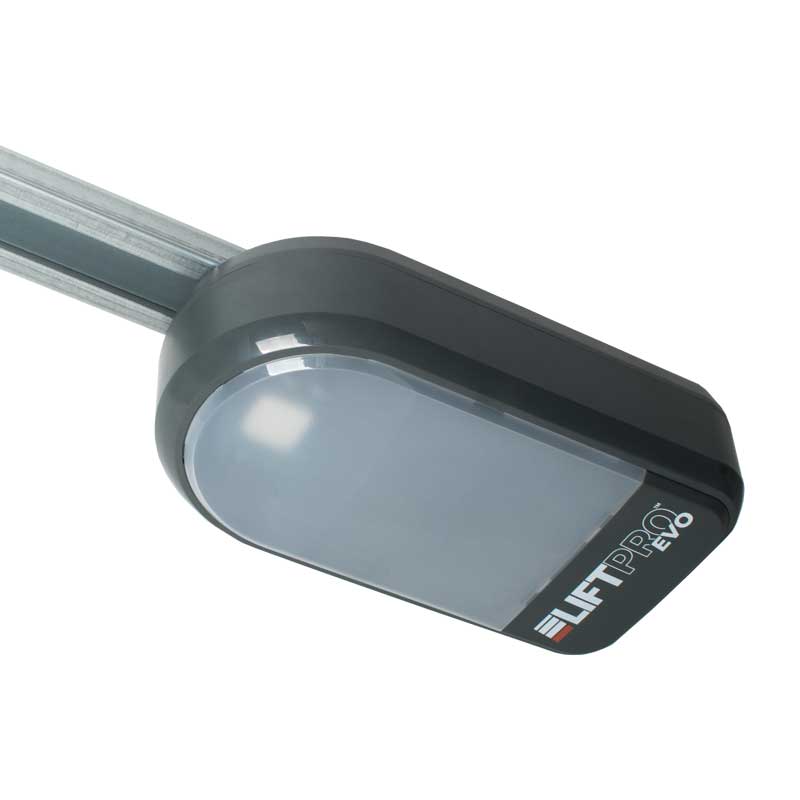

LiftPro EVO Belt Rail Garage Door Operator
No Longer Available – some replacement accessories might be still available at Sparesmaster
This head and rail package comprises the motor head and the 1-piece 2.5m belt rail.
Includes:
- Two 4-button remotes
- One 2-button wireless wall switch

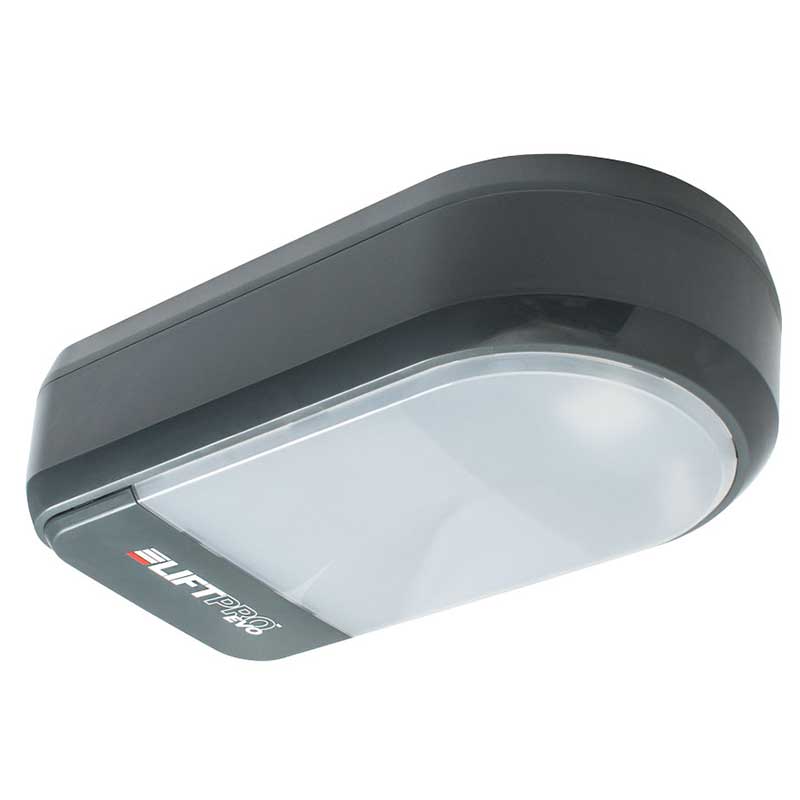

LiftPro EVO Garage Door Operator
- Powerful 750N Motor
- Max Speed 200mm/s
- Max Door Width 5000mm
- Max Door Height 2300mm
- Max Door Weight 125Kg
- Max Door Surface 11.5m²
- Soft Start & Stop
- Energy-efficient LED lighting
- Electronic Limit Switch for Easy Installation
- Space Saving Variability with 90° Head Rotation
- Automatic Force Adjustment
- Safety Return when Opening & Closing
- Automatic Locking of the Slide Mechanism
- Drive Mechanism Toothed Belt
- Radio Technology 868MHz / Rolling Code
- Quick and Simple to Install
- Maintenance Free Opera on
- 3 Year Warranty on Motor
- 1 Year Warranty on Accessories
| Input voltage | 220-240V AC, 50-60Hz |
| Max. pull force | 750N |
| Standby Power | 0.8W |
| Noise Level | 54dB |
| Max. opening speed | 200mm/s |
| Max. door width | 5000mm |
| Max. door height | 2300mm |
| Max. door weight | 125Kg |
| Max. door area | 11.5m² |
| Min. headroom required | 35mm |
| Drive mechanism | Belt |
| Lighting | LED 24v/15pcs |
| Limit setting | Electronic |
| Transformer | Overload protection technology |
| Radio technology | 433MHz/rolling code |
| Soft-start/stop | Yes |
| Memory registers | 180 |
| Warning light terminal | Included |
| Working temperature | -30°C to +55°C |
| Protection level | IP20 |
| Warranty | 3 years on motor 1 year on accessories |
LiftPro Evo Accessories
LiftPro Ultimate 1000 (Gen 1) Belt Rail Garage Door Operator
LiftPro Ultimate 1000 Belt Rail Garage Door Operator
No Longer Available – some replacement accessories might be still available at Sparesmaster
This head and rail package comprises the motor head and the belt rail.
Optional battery backup available (sold separately).
Includes:
- Two 4-button status display remotes
- Wireless wall console
LiftPro Ultimate 1000 Garage Door Operator - No Longer Available
The LiftPro Ultimate 1000 operator has been discontinued and no longer available. We still have a range of spares and accessories for this operator available, if required.
- 1000N
- Travel Limit Setting
- Reversal Height Setting
- Reversal Force Setting
- Maintenance Alarm
- Half-Open / Half-Close / Height Setting
- Automatic Closing Setting (Time & Height)
- Status Display Remote
- Photo Cell ON/OFF Adjustment
- Maximal Remote Codes Setting
- Travel Speed Setting (door dependent)
- Warning Light
- Pass Door Switch Type Setting
- LED OFF Time Setting
- 3 year warranty on motor and components
- 1 year warranty on handsets
| Input voltage | 200-240V/110-127V, 50-60Hz |
| Max. pull force | 1000N |
| Max. door area | 15m² |
| Max. lifting force | 100Kg |
| Max. opening speed | 160mm/s |
| Max. door height | 2400-3500mm |
| Bottom base material | Metal |
| Drive mechanism | Belt |
| Lighting | L.E.D 24v/15pcs |
| Limit setting | Electronic |
| Transformer | Overload protection technology |
| Radio technology | 433MHz/rolling code |
| Soft-start/stop | Yes |
| Code storage capacity | 50 different codes |
| Caution light terminal | Included |
| Working temperature | -40°C to +50°C |
| Protection level | IP20 |
LiftPro Accessories
